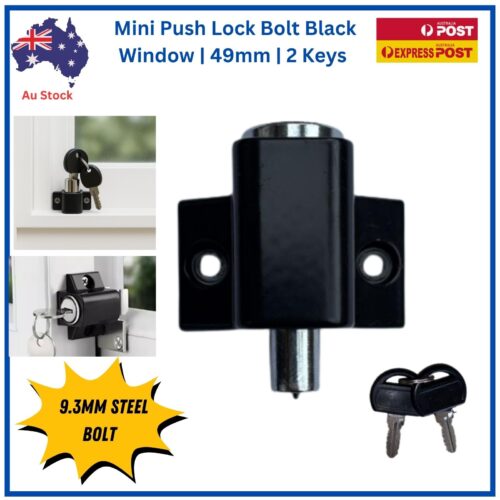

TradeBase Mini Push Lock Window and Door Lock | Black

The TradeBase Mini Push Bolt provides compact, heavy-duty protection for both doors and windows.
Built from a durable zinc alloy body with a smooth chrome-plated barrel, it delivers long-lasting strength and reliable operation.

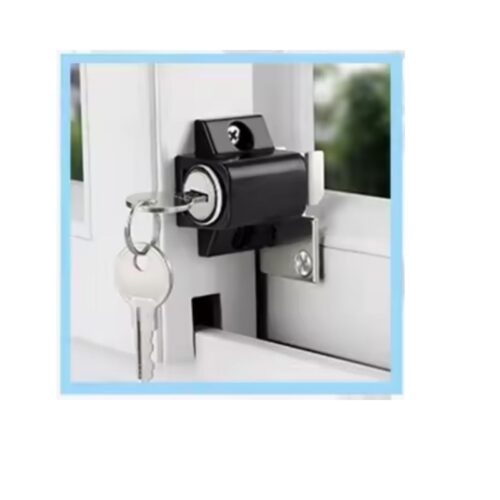

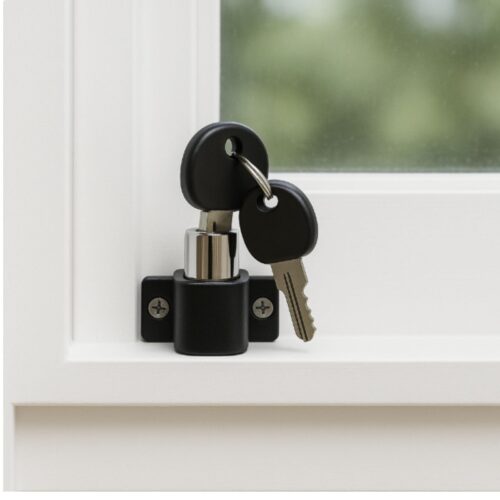

Simply push the bolt in to lock your door or window, then use the key to release — ideal for patio, sliding and French doors, as well as timber and aluminium windows.
The compact design suits narrow or modern frames and is suitable for both residential and commercial applications.

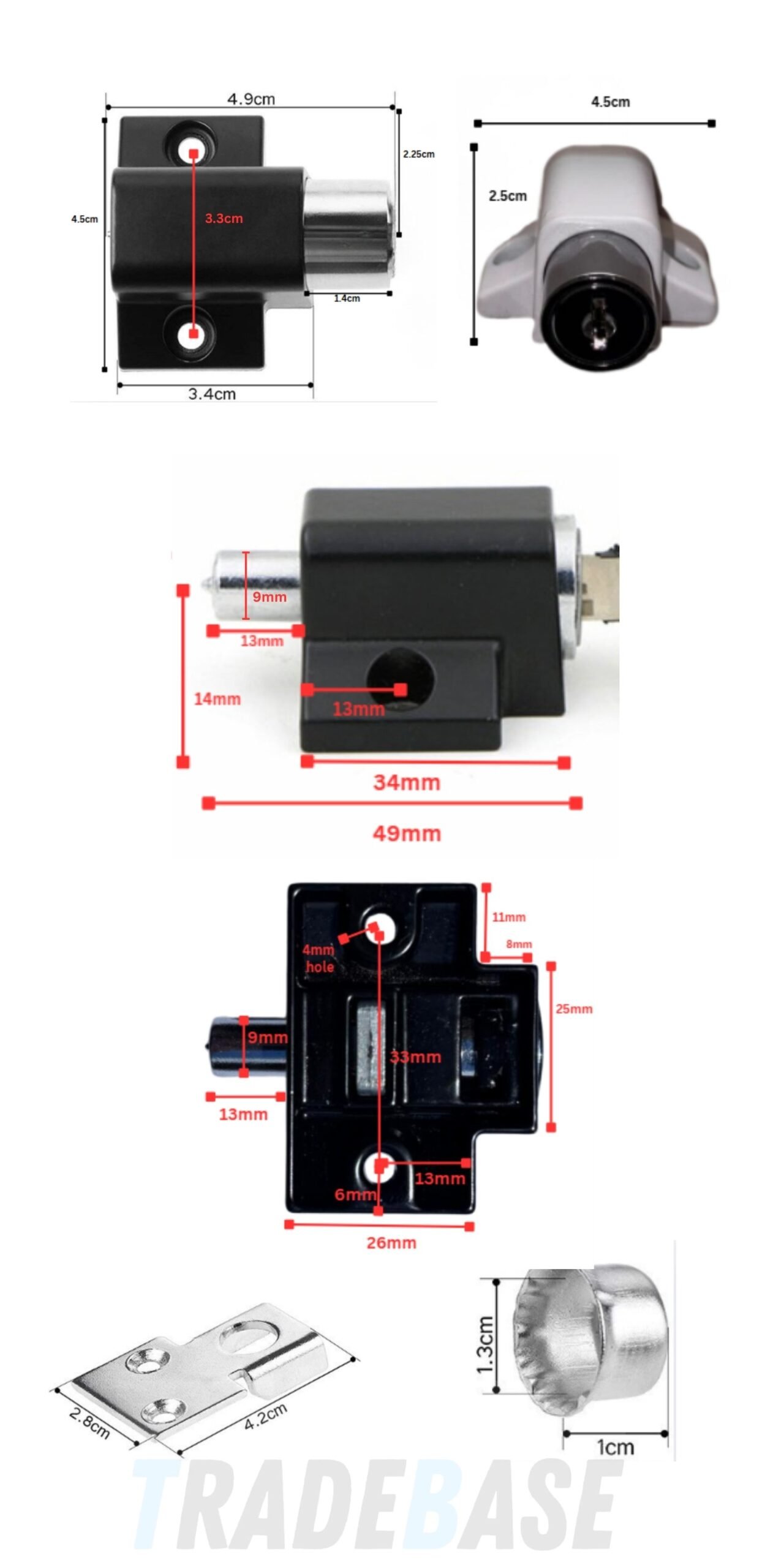

Specifications
• Overall Width: 3.4 cm
• Body Length: 4.9 cm
• Body Height: 4.5 cm
• Bolt Throw (Projection): 2.25 cm
• Barrel Diameter: 1.3 cm
• Barrel Depth: 1.0 cm
• Hole Spacing (Centre to Centre): 2.5 cm
• Strike Plate: 4.2 cm (L) × 2.8 cm (W)
• Material: Zinc alloy body with chrome-plated barrel
• Finish: Black
• Operation: Push to lock • Key to unlock

Installation Notes
A drill is required for installation.
Mounts easily using standard screws into timber or aluminium frames.
Pre-drill holes for a snug and secure fit.

Included in Pack
• 1 × Push Bolt
• 1 × Strike Plate
• 1 × Barrel Sleeve
• 2 × Keys – all multiple orders keyed alike
• Fixing Screws
