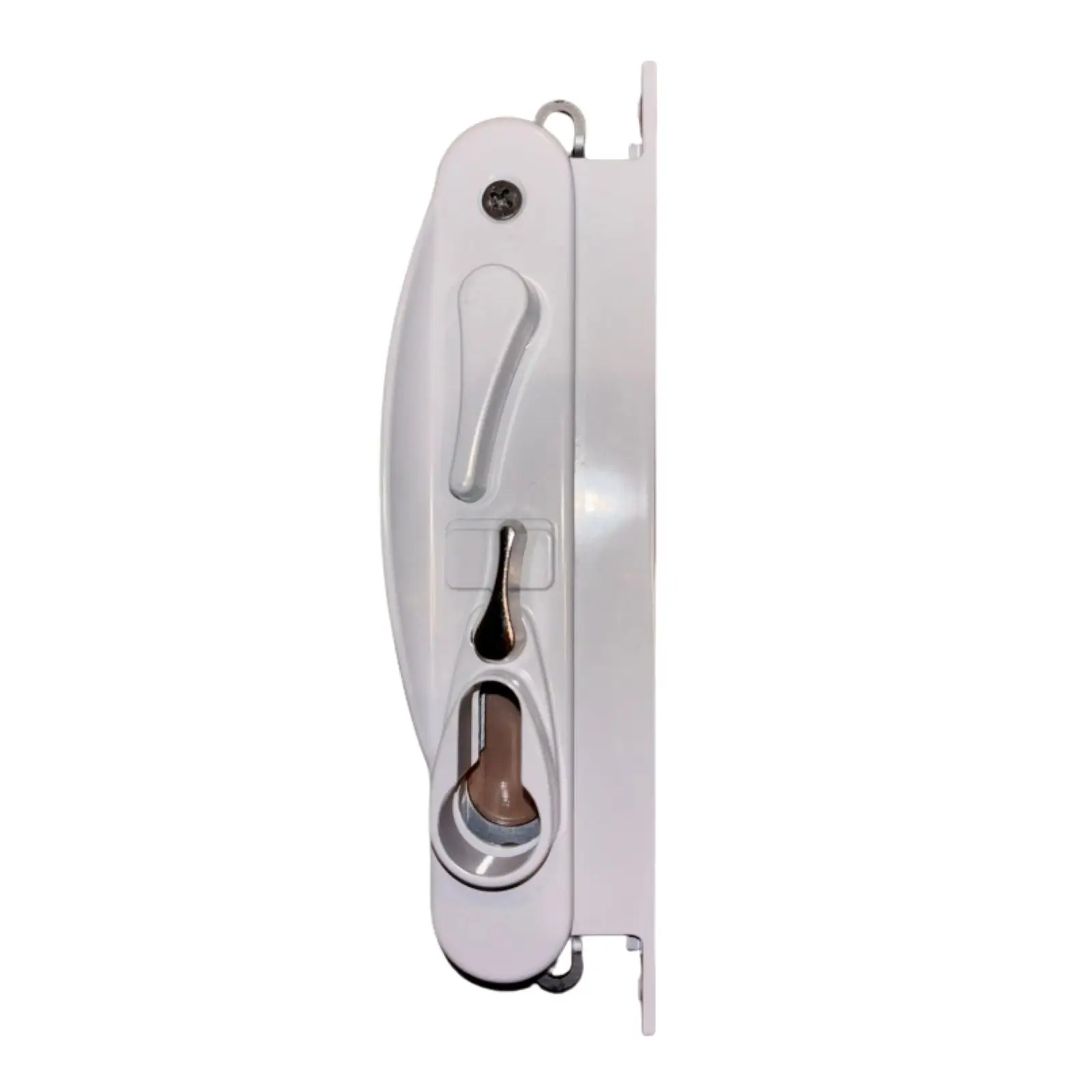

Sliding Security Door Lock | Snib | White

This white sliding security screen door lock is designed to replace most locks found on Australian aluminium sliding doors. It matches the common footprints used by Whitco®, Doric®, Austral® and similar brands, making it ideal for repairs, upgrades or replacing worn hardware.
This version does not include a cylinder. Bring your old lock and reuse your existing cylinder or fit any standard lazy-cam Euro profile cylinder.

Features

• Fits most Australian sliding security doors

• Retrofits Whitco®, Doric®, Austral® and similar lock preparations

• No cylinder included – reuse your old cylinder

• Parrot-beak deadlatching for secure engagement

• Self-latching mechanism engages automatically

• Internal snib lever with key override capability

• Zinc diecast construction with white powder-coated finish

• Compatible with standard lazy-cam Euro cylinders

• Installation instructions included

Dimensions

Lock Body
Height: 184 mm
Faceplate width: 48 mm
Backplate width: 33.5 mm
Depth: 44 mm
Screw spacing: 127 mm (top–middle), 146.6 mm (middle–bottom)
Snib/cylinder vertical span: 134–178 mm

Striker Plate
Height: 70 mm
Width: 20 mm
Screw spacing: 50 mm

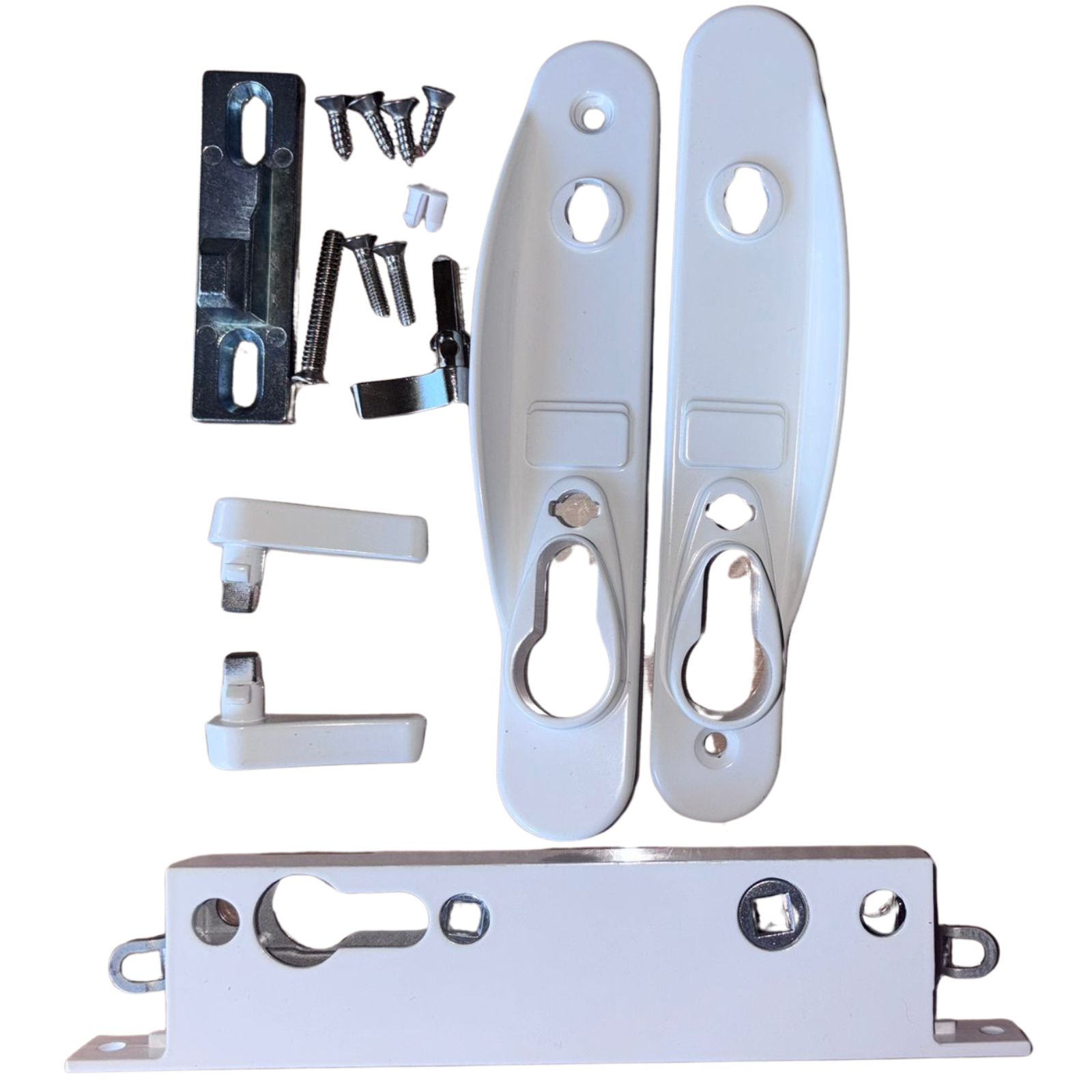

Pack Contents

Lock body × 1
Handle and lever assemblies × 2
Snib lever × 1
Striker plate × 1
12 mm fixing screws × 2
16 mm handle screws × 2
12 mm countersunk striker screws × 2
32 mm cylinder retaining screw × 1
Snib plug × 1
Installation instructions

Notes

Cylinder and keys are not included.
Reuse your existing lazy-cam Euro profile cylinder or purchase a new one separately.
Snib lever is for convenience only; proper security requires deadlocking once a cylinder is installed.
