Sliding Security Barrier Door Lock | Black | Non Keyed

The Tradebase Sliding Barrier Door Lock – Non-Keyed is a direct replacement lock body for sliding barrier, security, and screen doors originally fitted with Austral® TD7 and Gainsborough® style locks.

This non-keyed version does not include a cylinder or keys, making it ideal when reusing an existing cylinder. The self-latching bolt automatically engages when the door is closed, while the internal snib provides convenient locking from inside. When used with a compatible cylinder, the key overrides the snib for added safety.

An integrated anti-lift pin in the striker plate helps prevent the door from being lifted out of its track. The lock is universal and reversible, allowing installation on left- or right-hand sliding doors. Finished in black for durability and corrosion resistance.

Features:
• Non-keyed lock body – no cylinder or keys supplied
• Replaces most Austral® TD7 and Gainsborough® sliding door locks
• Self-latching bolt engages automatically on close
• Internal snib locking (key override when used with cylinder)
• Anti-lift striker plate for improved security
• Universal / reversible – left or right hand installation
• Durable black finish

Suitable for:
• Sliding barrier doors
• Sliding security doors
• Sliding screen doors
• Fly doors

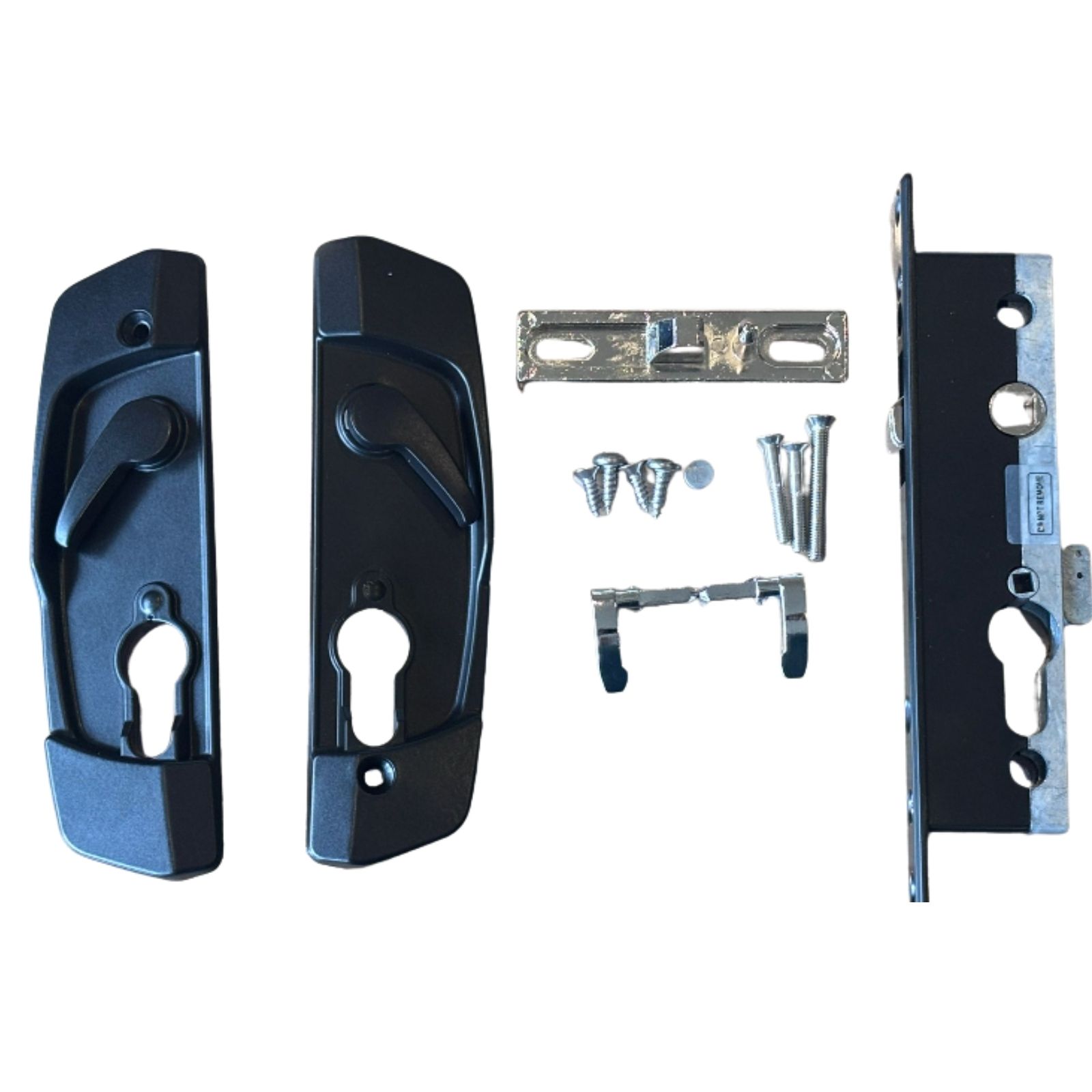

Pack Contents:
• Lock body × 1
• Handle & lever assemblies × 2
• Snib locking plug × 1
• Striker plate with anti-lift pin × 1
• Fixing screws and striker screws
• Fitting instructions

Note:
Cylinder and keys NOT included. Existing cylinder must be reused.

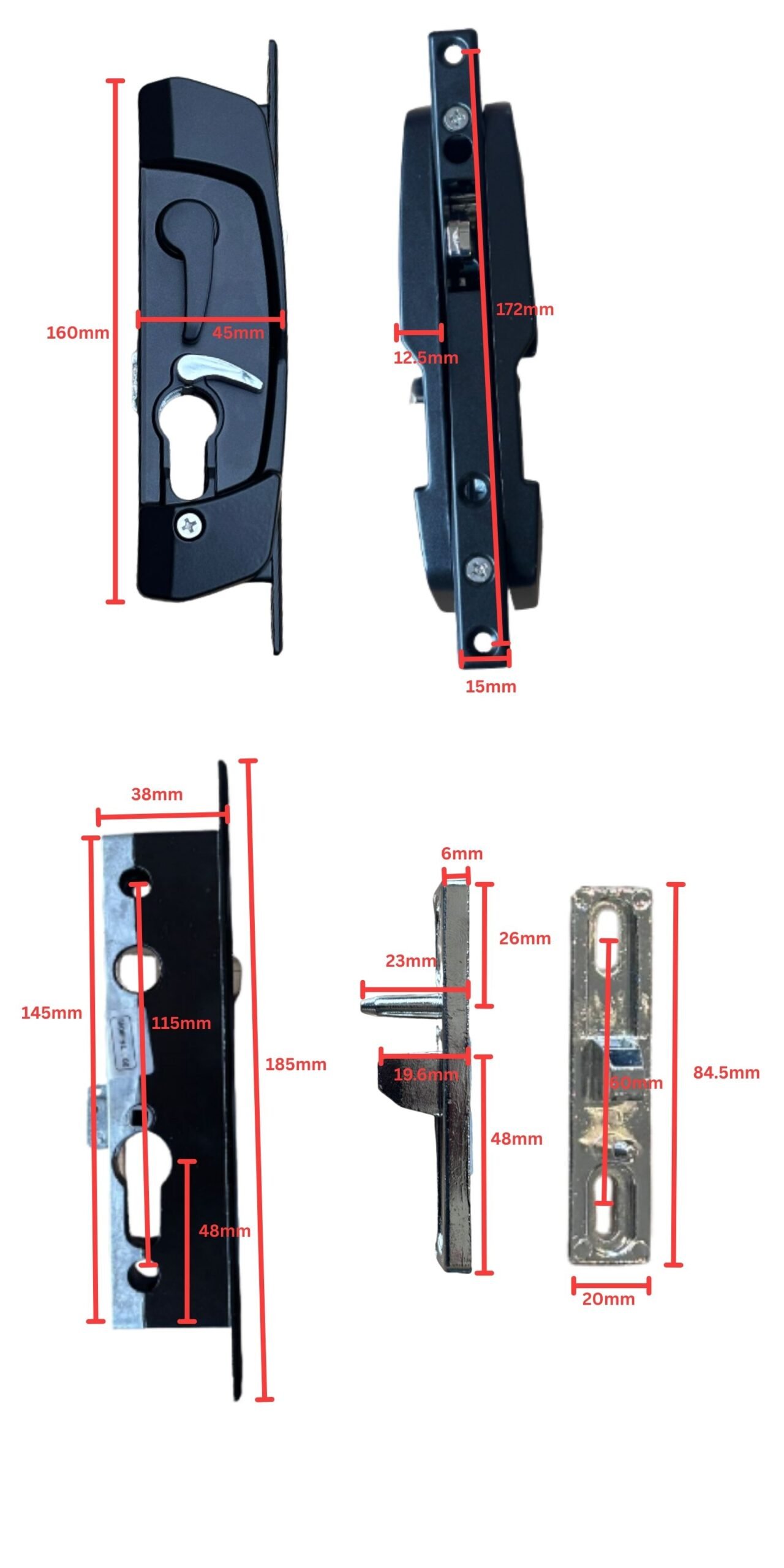

Key Dimensions (reference):
• Overall faceplate height: 160 mm
• Backset: 45 mm
• Faceplate width: 15 mm
• Lock body thickness: 12.5 mm
• Striker plate height: 84.5 mm

Refer to images for full dimensional details.
