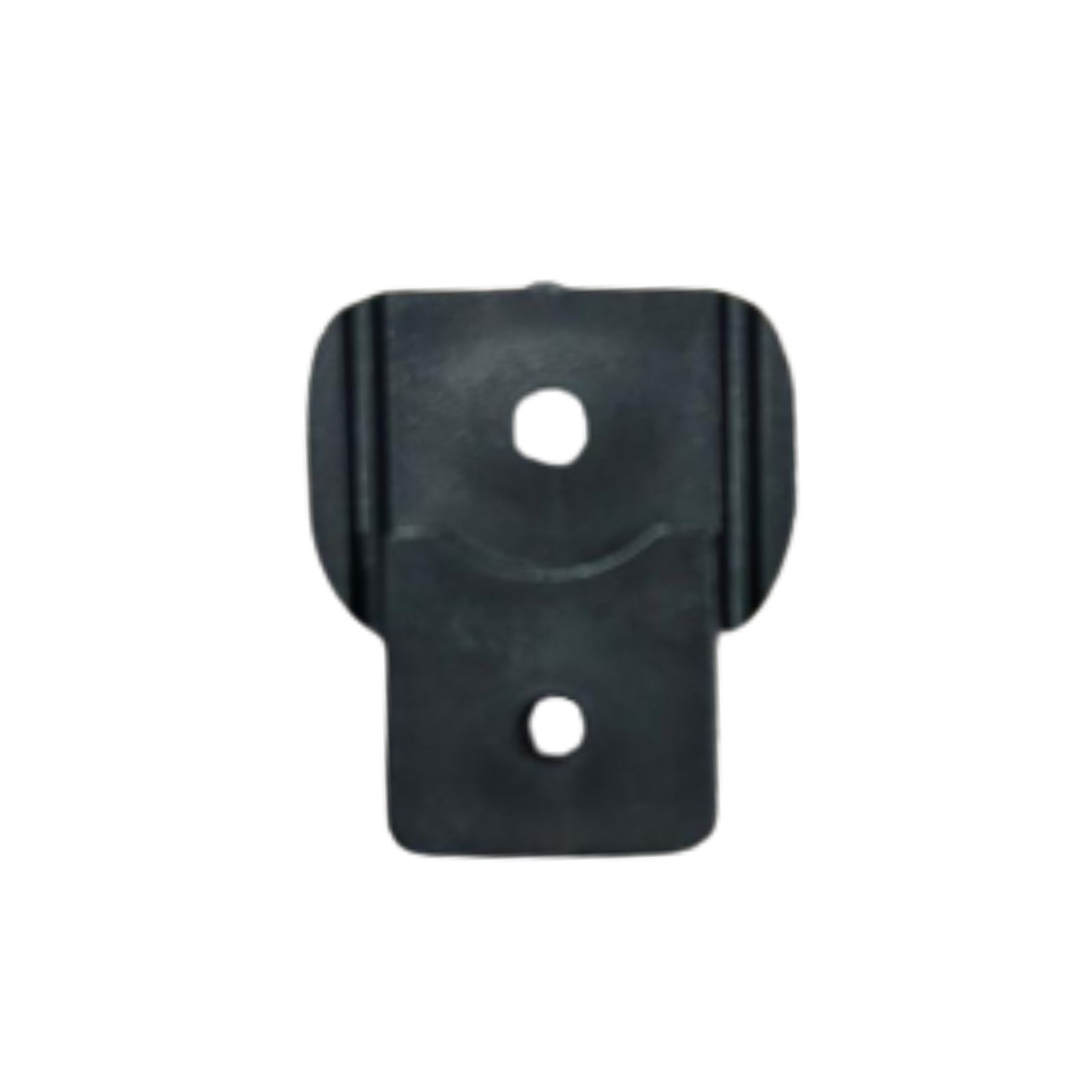

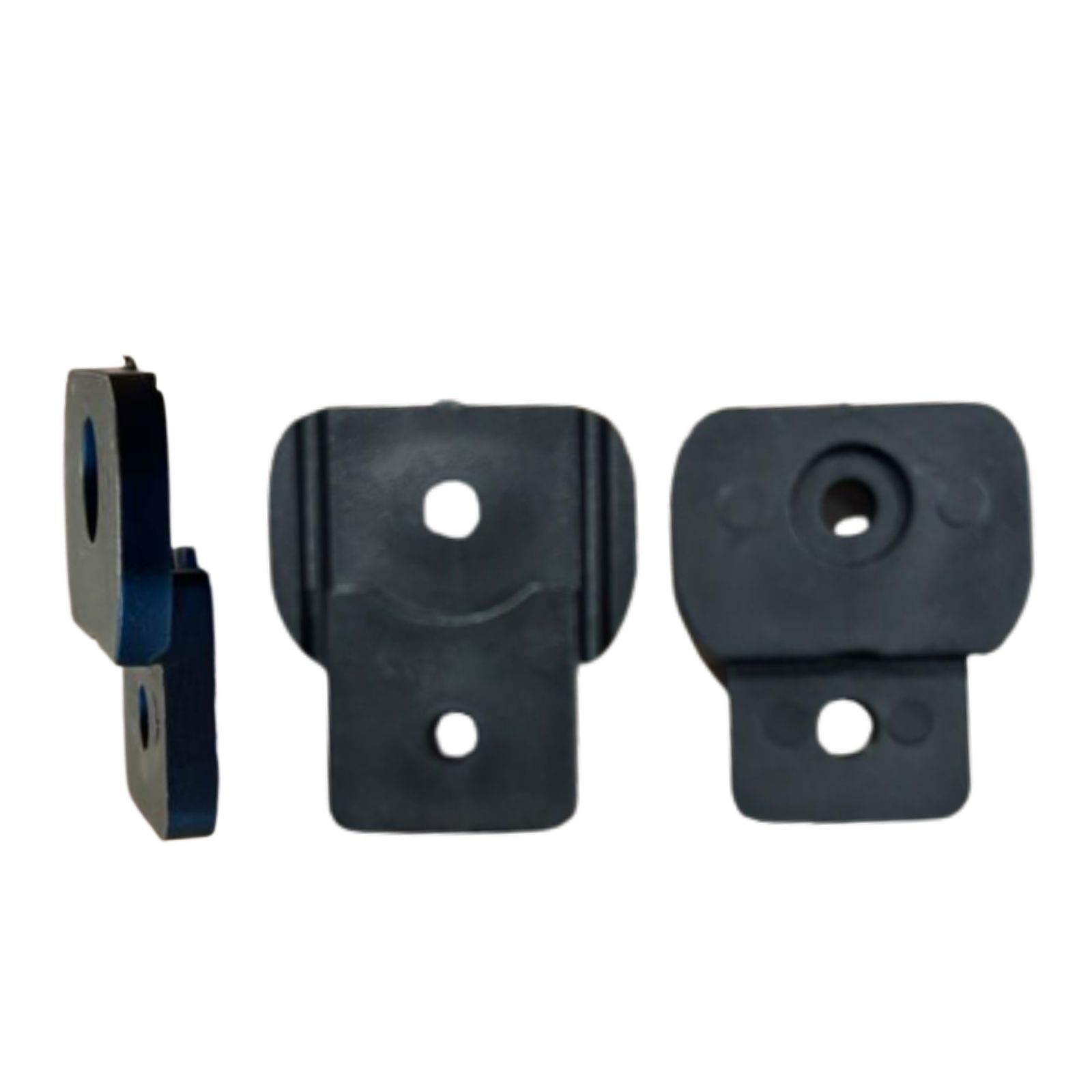

Sliding Screen Door Guide Block | Universal Fit | Black 23.5mm

This universal sliding screen door guide block is designed to stabilise sliding screen and security doors by keeping the door panel centred within the head track.

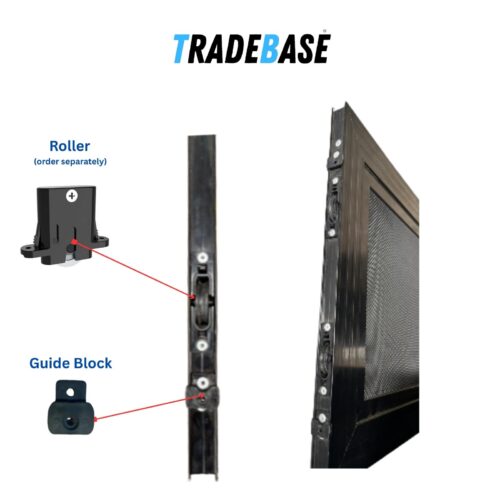

Mounted to the top of the door frame, the guide block helps prevent the door from rubbing against the channel, reduces rattling and vibration, and improves smooth sliding operation. It is commonly used in conjunction with a roller (sold separately) as part of a complete sliding door guidance system.

Suitable for a wide range of aluminium sliding screen and security doors, this guide block is ideal for replacements, repairs, or new installations where door alignment and noise reduction are required.

Note: This listing is for the guide block only. Roller is not included and can be ordered separately if required.

Key Features

• Keeps door centred in the head track
• Reduces rubbing against the channel
• Minimises rattling and vibration
• Improves smooth sliding performance
• Universal fit for most common sliding screen & security doors
• Easy DIY installation
• Black finish to suit modern door frames

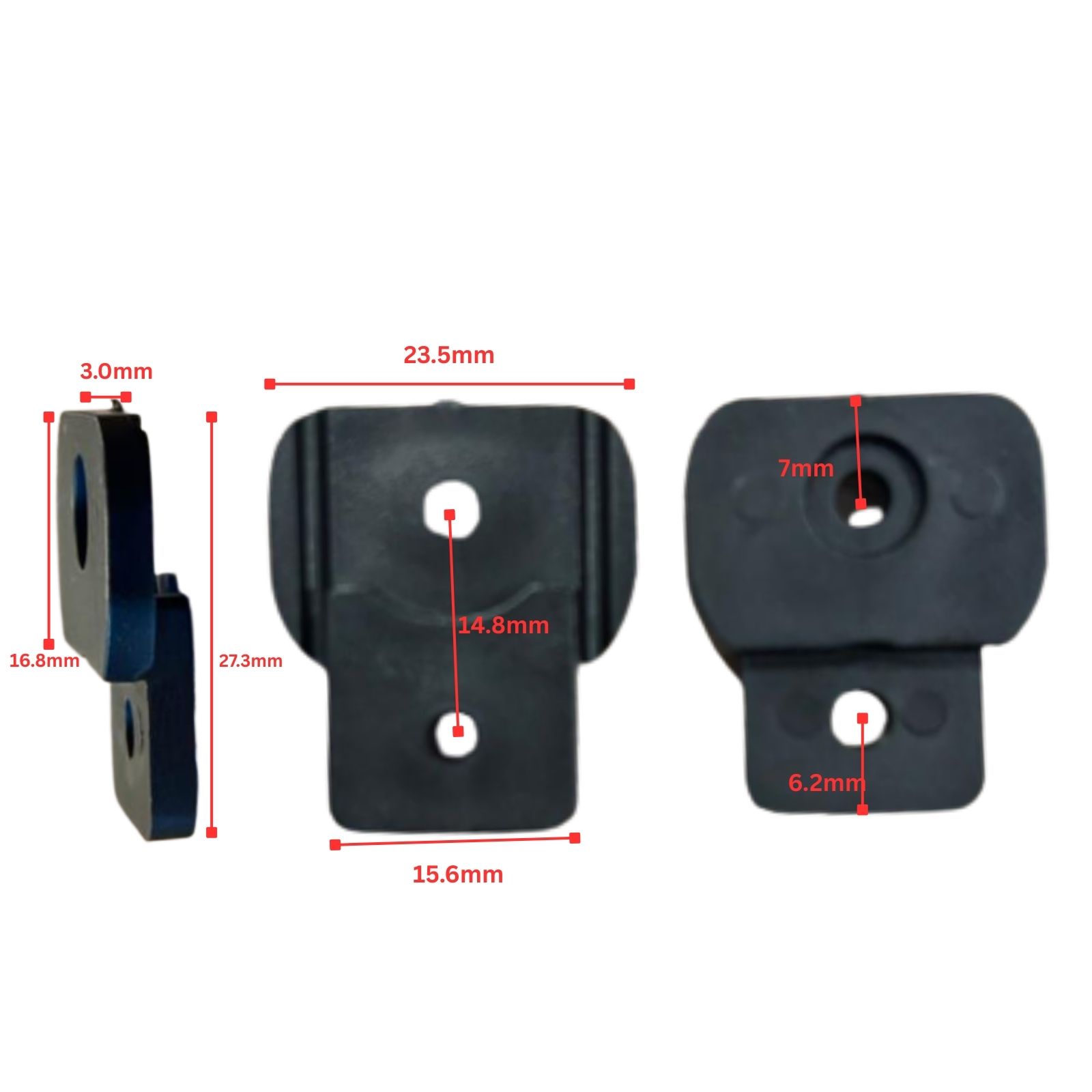

Specifications

• Application: Sliding screen & security doors
• Mounting position: Top of door
• Width: 23.5mm
• Overall height: 27.3mm (approx.)
• Fixing hole centres: 14.8mm
• Fixing hole sizes: 7mm (upper), 6.2mm (lower)
• Colour: Black
• Material: Durable plastic
