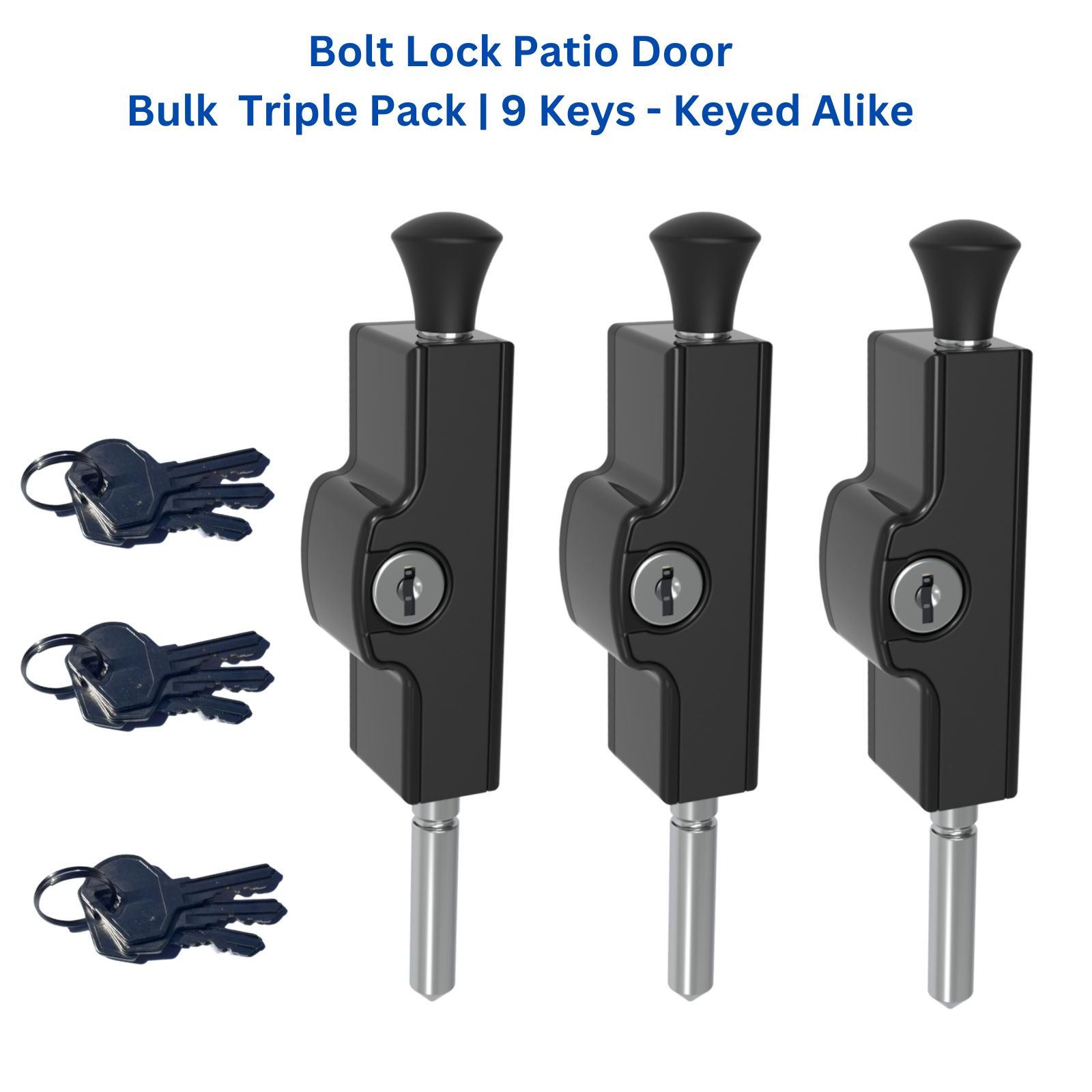

Patio Bolt Lock Black | Triple Pack | 304 Stainless Steel | 9 Keys – Keyed Alike

The TradeBase Triple Pack Patio Door Bolt Set delivers professional-grade security for sliding, hinged, and French doors. Each unit is crafted with a 304 stainless steel bolt for corrosion resistance and strength, combined with a heavy-duty zinc die-cast body and concealed fixings for a clean, tamper-resistant finish.

All three bolts are keyed alike, allowing you to secure multiple doors with a single key. Designed for both timber and aluminium doors, the reversible bolt design makes installation simple in either left- or right-hand configurations.

Product Features
• Triple Pack – 3 Locks Keyed Alike for one-key convenience.
• 304 Stainless Steel Bolt resists rust and corrosion.
• 49 mm Bolt Throw for deep, secure engagement.
• Zinc Die-Cast Body built for strength and durability.
• Concealed Fixings create a sleek, tamper-proof appearance.
• Reversible Bolt suits left- or right-hand door setups.
• Venting Position Option allows airflow while locked on sliding doors.
• Stainless Steel Ferrule included for timber applications.
• 10-Year TradeBase Warranty for lasting confidence.
• Universal Fit replaces most Australian surface-mounted bolt locks.

Parts Included (Per Lock)
• 1 × Bolt Lock Body (156 mm, black finish)
• 1 × 304 Stainless Steel Bolt (9.5 mm Ø × 49 mm throw)
• 1 × Flat Steel Keeper Plate
• 1 × Stainless Steel Ferrule (for timber doors)
• 1 × Barrel Lock Plug with Retaining Nut (pre-installed)
• 3 × Keys (Keyed Alike for all 3 locks)
• 2 × Concealed Fixing Covers
• 1 × Screw Pack (mounting hardware)
• 1 × Installation Guide & Template

Applications
• Sliding patio doors
• Hinged timber or aluminium doors
• French and balcony door sets

Specifications
• Body Length: 156 mm
• Bolt Diameter: 9.5 mm
• Bolt Throw: 49 mm
• Bolt Material: 304 Stainless Steel
• Body Material: Zinc Die-Cast Metal
• Finish: Black Powder-Coat
• Keys: 3 (Keyed Alike across all locks)
• Warranty: 10 Years
