Euro Cylinder with Thumbturn 65mm 5-Pin C4

The TradeBase 65mm Euro Cylinder with Fixed Thumbturn (Snib) is a reliable and easy-to-use locking solution for residential and light commercial applications. Featuring a key-operated exterior and a convenient fixed thumbturn (snib) on the interior, this cylinder eliminates the need to carry keys when operating the door from inside.

This cylinder is supplied Keyed Different (KD) — each cylinder comes with its own unique key. No two cylinders in this range are keyed alike, making it ideal for installations where independent door access is required.

Built to Australian C4 standard with a 5-pin mechanism and fixed cam design, this 65mm cylinder is compatible with all standard euro mortice locks used in timber, aluminium, and UPVC door systems.

Applications

• Sliding doors
• Patio doors
• Aluminium doors
• Timber doors
• Screen doors
• Security doors
• uPVC doors
• French doors
• Bi-fold doors
• Multi-point lock doors
• Cavity sliding doors
• Euro mortice lock replacement barrel

Specifications

• SKU: CYLEUTKD

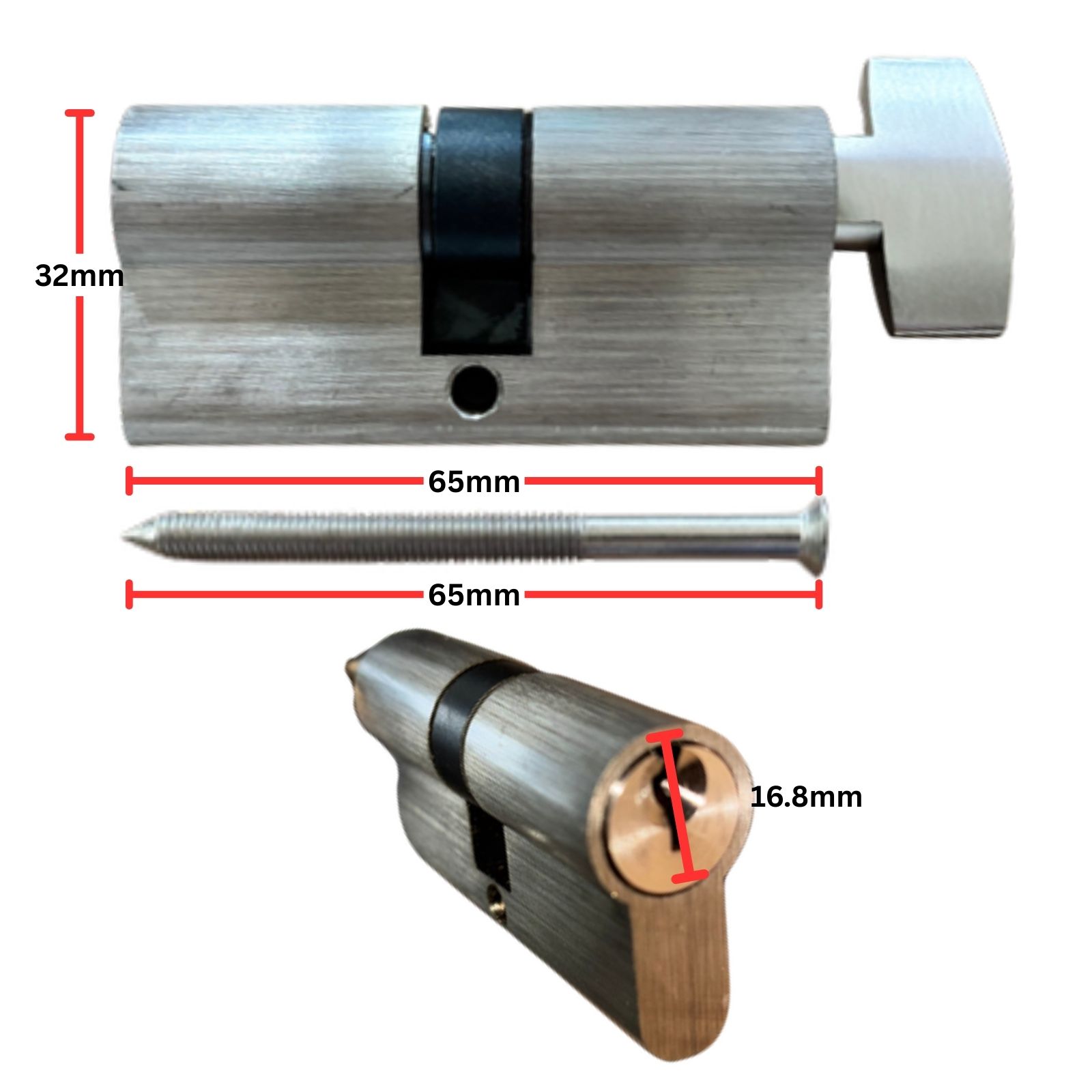

• Nominal Length: 65mm
• Pin Configuration: 5-pin
• Security Rating: C4
• Thumbturn Type: Fixed Thumbturn / Snib
• Keying: Keyed Different (KD) — each cylinder supplied with its own unique key
• Finish: Satin Chrome
• Material: Brass & Zinc Alloy
• Compatibility: Euro mortice locks

What’s Included

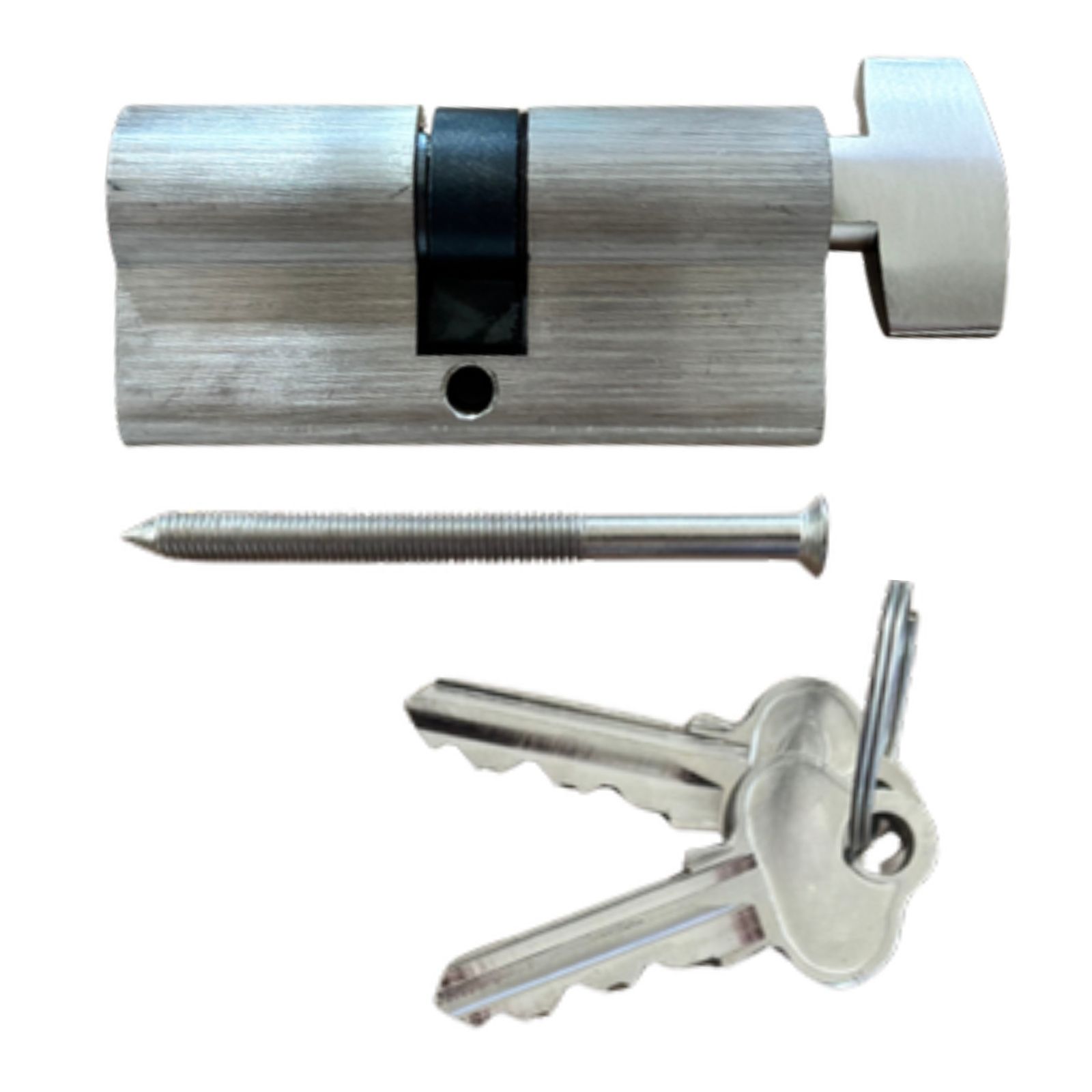

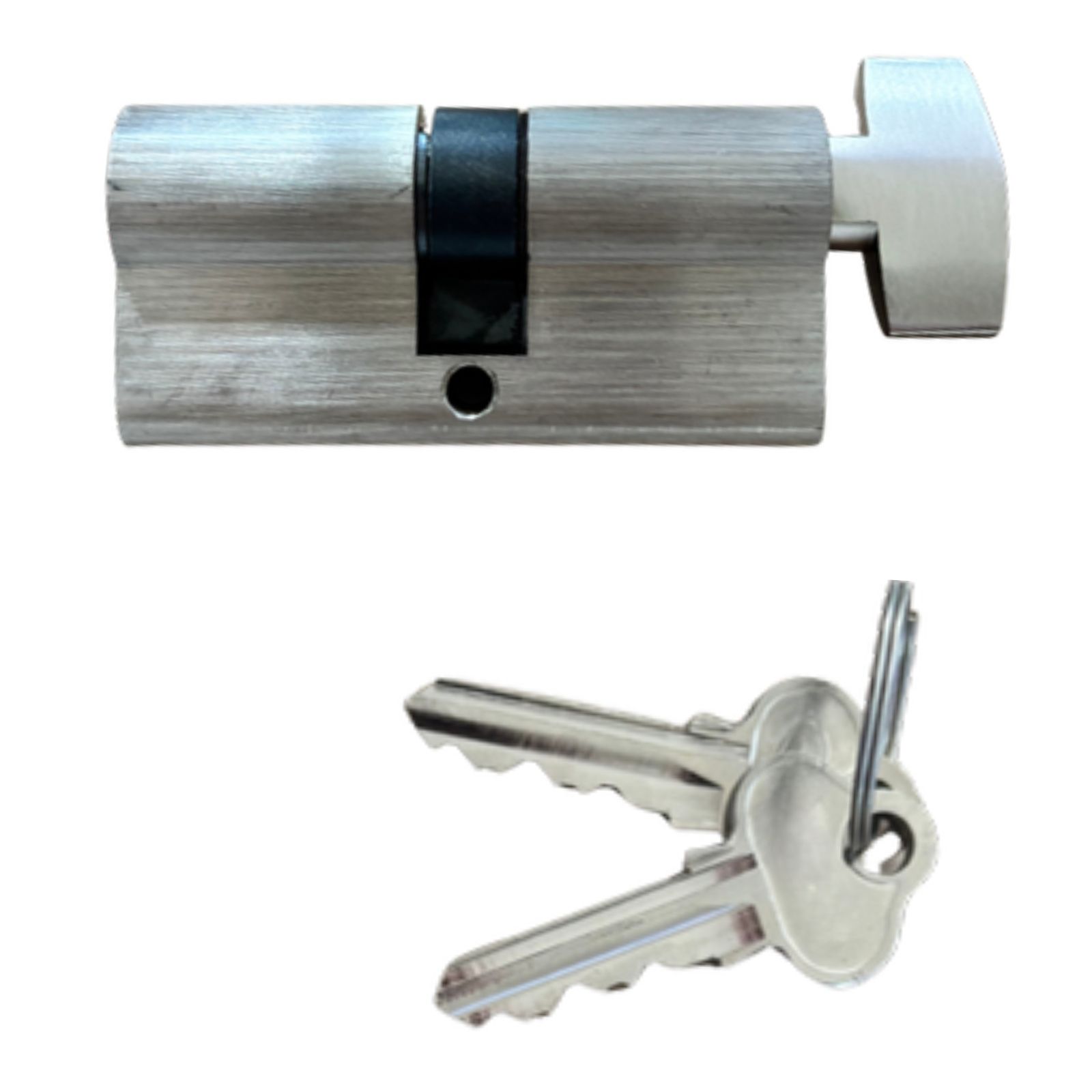

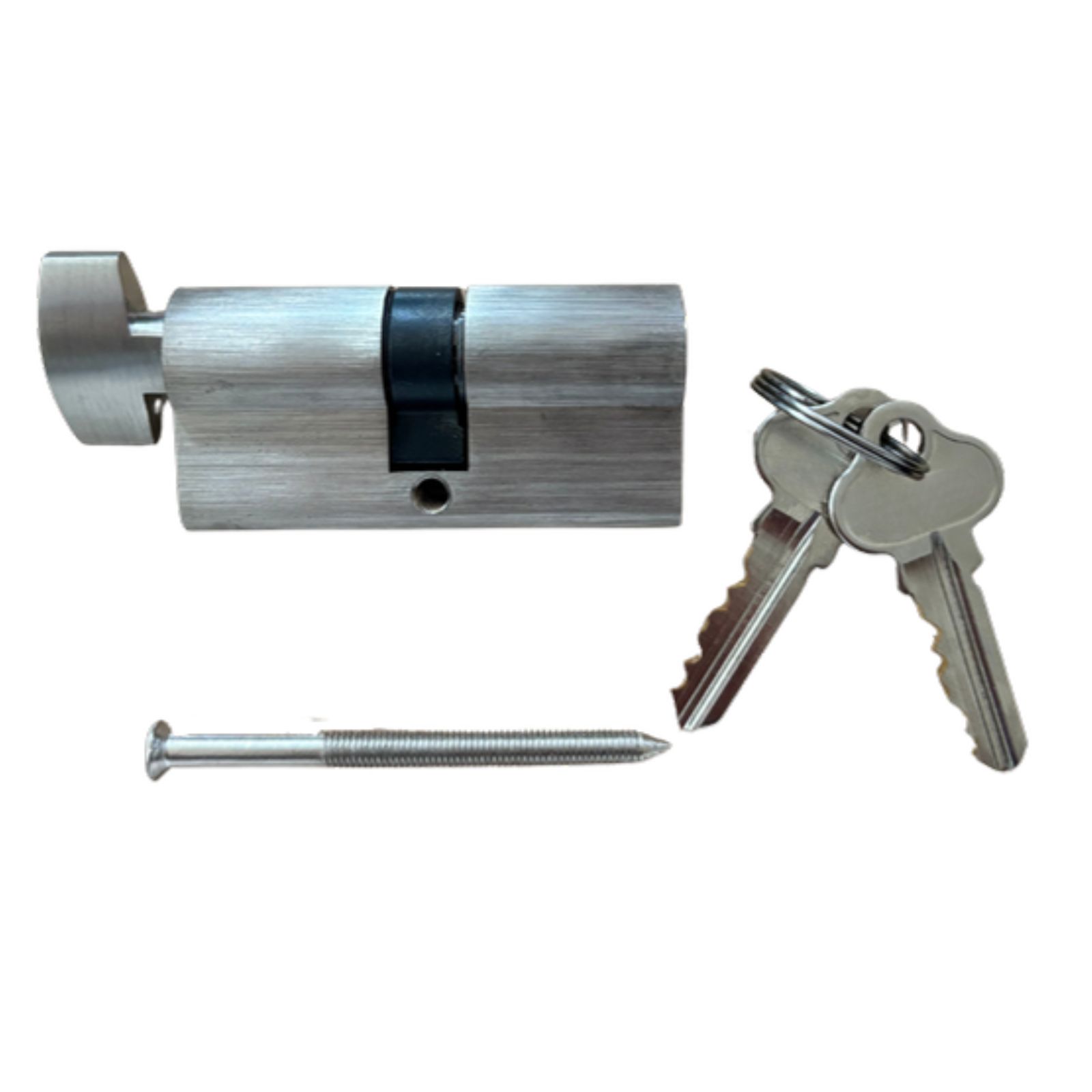

• 1 x Euro cylinder with fixed thumbturn (satin chrome)
• 2 x Keys (unique to this cylinder)
• 1 x Fixing screw
