Security Screen Door Closer Pneumatic | One Touch Adjust | Universal | White

Easy Screen Door Closer – with ANTISLAM® technolgy

The Tradebase Easy Screen Door Closer – White features ANTISLAM® technology, delivering smooth, controlled pneumatic closing to prevent doors from slamming. Designed for hinged screen, barrier, and security doors up to 20kg, it provides reliable everyday performance for residential applications.

Manufactured with a sturdy aluminium body and UV-resistant polymer components, this closer is built for durability and has been tested for over 60,000 operating cycles. The pneumatic mechanism ensures consistent action, while the adjustable valve allows the closing speed to be fine-tuned to suit the door and environment.

A convenient hold-open catch allows the door to be held open when required and released easily with a simple push. The closer is universal, suitable for both left- and right-hand hinged doors, and can replace most existing screen door closers.

Features:
• Pneumatic ANTISLAM® technology
• Smooth, controlled closing action
• Adjustable closing speed
• One-touch hold-open catch
• Suits hinged screen, barrier, and security doors
• Rated for doors up to 20kg
• Universal fit – left or right hand
• Sturdy aluminium construction
• UV-resistant polymer components
• White powder-coated finish
• Tested for over 60,000 cycles

Suitable for:
• Hinged screen doors
• Hinged barrier doors
• Hinged security doors
• Light internal hinged doors (up to 20kg)

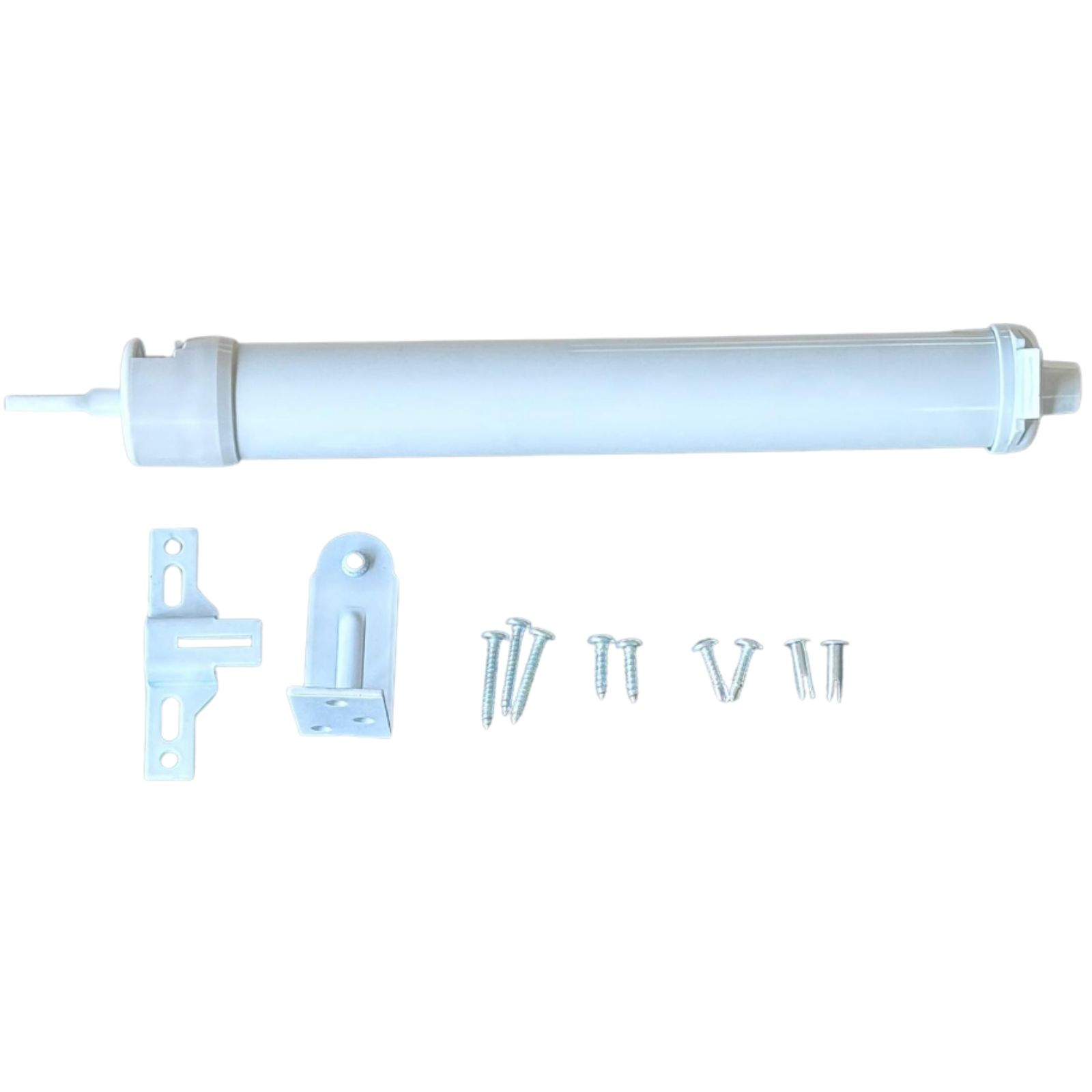

Pack Contents

• Pneumatic closer cylinder (White) × 1
• Door bracket × 1
• Jamb bracket × 1
• Closer rod × 1
• Screw kit:
– 3mm × 20mm screws × 2
– 3mm × 12mm screws × 2
– 3mm × 10mm self-drilling screws × 2

Fitting Instructions (Summary)

• Fix jamb bracket to door jamb using 3mm × 20mm screws, positioned 25mm back from door edge
• Insert closer rod into jamb bracket slot with bent end facing the door
• Close door and align door bracket with rod, then secure using 3mm × 12mm screws
• Attach closer cylinder with smaller end nearest the jamb bracket
• Adjust closing speed via valve screw (clockwise slower, anti-clockwise faster)

Specifications

• Door weight rating: Up to 20kg
• Operation: Pneumatic
• Closing speed: Adjustable
• Hold-open: Yes
• Material: Aluminium with polymer components
• Finish: White powder coated
• Handing: Left or right

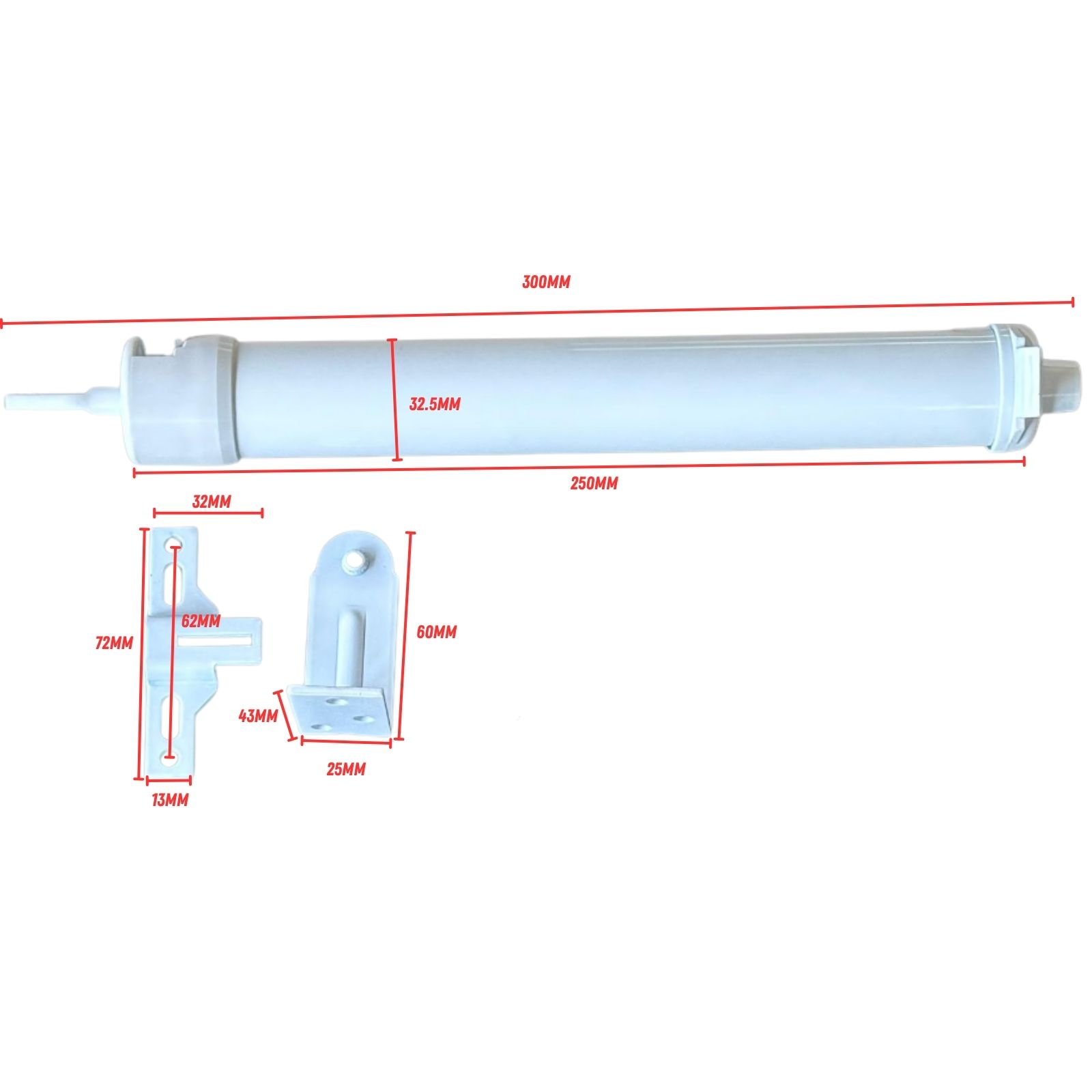

Key Dimensions (Reference)

• Overall length: 300 mm
• Body length: 250 mm
• Cylinder diameter: 32.5 mm

Refer to images for full dimensional details.
