Adjustable Stainless Steel Carriage Bearing and Axel Polymer Roller | 35kg Rated | Sliding Door | Wardrobe | Patio

This Stainless Sliding Door Roller Carriage is a premium heavy-duty adjustable roller assembly designed for sliding wardrobe doors, sliding timber doors, and sliding patio doors, particularly where corrosion resistance and higher load capacity are required.

The carriage is manufactured from stainless steel and fitted with a 32 mm high-tech polymer roller incorporating a stainless steel bearing and axle, delivering smooth, quiet operation and excellent resistance to corrosion in coastal or high-humidity environments.

The 17 mm flared wings assist with secure carriage retention during fitting, while the adjustable height mechanism allows precise door alignment during installation or replacement. Rated to 35 kg, this Stainless Sliding Door Roller Carriage can also be used as a heavy-duty upgrade to common 17 mm flared 25 kg acetal roller units.

Sold individually.

Features

• Adjustable carriage for accurate door height alignment
• 32 mm high-tech polymer roller
• Stainless steel bearing and axle
• Stainless steel carriage – corrosion resistant
• 17 mm flared wings for fitting and retention
• Smooth, low-friction rolling action
• 35 kg heavy-duty load rating
• Suitable for coastal and humid environments

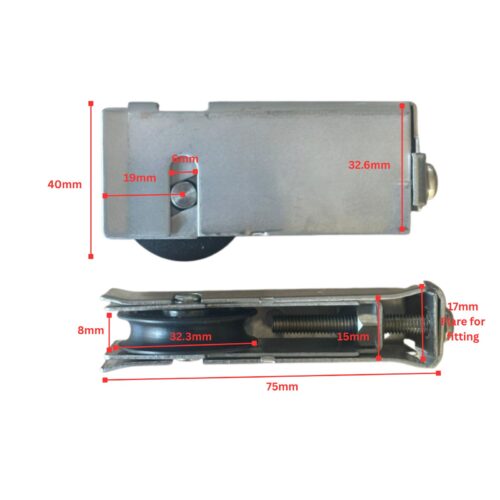

Dimensions (Approx.)

• Roller diameter: 32 mm
• Flared wings: 17 mm
• Overall carriage length: 75 mm
• Carriage height: 32.6 mm

Refer to images for full dimensional detail.

Compatibility

Compatible with sliding door systems that use 17 mm flared carriage rollers, including systems commonly found in ranges by:
Frontline®, Allulite®, Statesman®, Vincent®, Naco®, Trend®, Vantage® Rolltrak®

Also comparable in form and function to CREXAC17 – a more corrosion resistant upgrade.
Compatibility is based on dimensions and configuration—always confirm measurements before purchase.

Applications

• Sliding wardrobe doors
• Sliding timber doors
• Sliding patio doors
• Coastal or corrosion-prone installations
• Replacement or upgrade of 17 mm flared roller systems

What’s Included

• 1 × Stainless Sliding Door Roller Carriage
