Adjustable Carriage and Brass Roller | Sliding Door | Wardrobe | Patio | 35kg Heavy Duty Rated

This heavy-duty adjustable carriage and brass roller is designed for sliding wardrobe doors, sliding timber doors, and selected sliding patio and security doors where a flat-sided, non-flanged (unflared) carriage is required.

The carriage features a mild steel roller housing with zinc passivation for corrosion resistance, combined with a 32 mm solid brass tyre roller with integrated bearing for smooth, durable operation under higher loads.

A combination head adjusting screw allows precise height adjustment during installation or replacement, ensuring correct door alignment. The 15 mm wide flat-sided carriage is suited to compatible tracks that do not require flared wings.

Rated to 35 kg, this unit is suitable for heavier sliding door panels and demanding residential applications.

Features

• Adjustable carriage for accurate door height alignment
• 32 mm solid brass tyre roller with bearing
• Flat-sided, non-flanged (unflared) carriage design
• 15 mm carriage width
• Mild steel roller housing with zinc passivation
• Combination head adjusting screw
• Round washer configuration
• Smooth, quiet rolling action
• 35 kg heavy-duty load rating

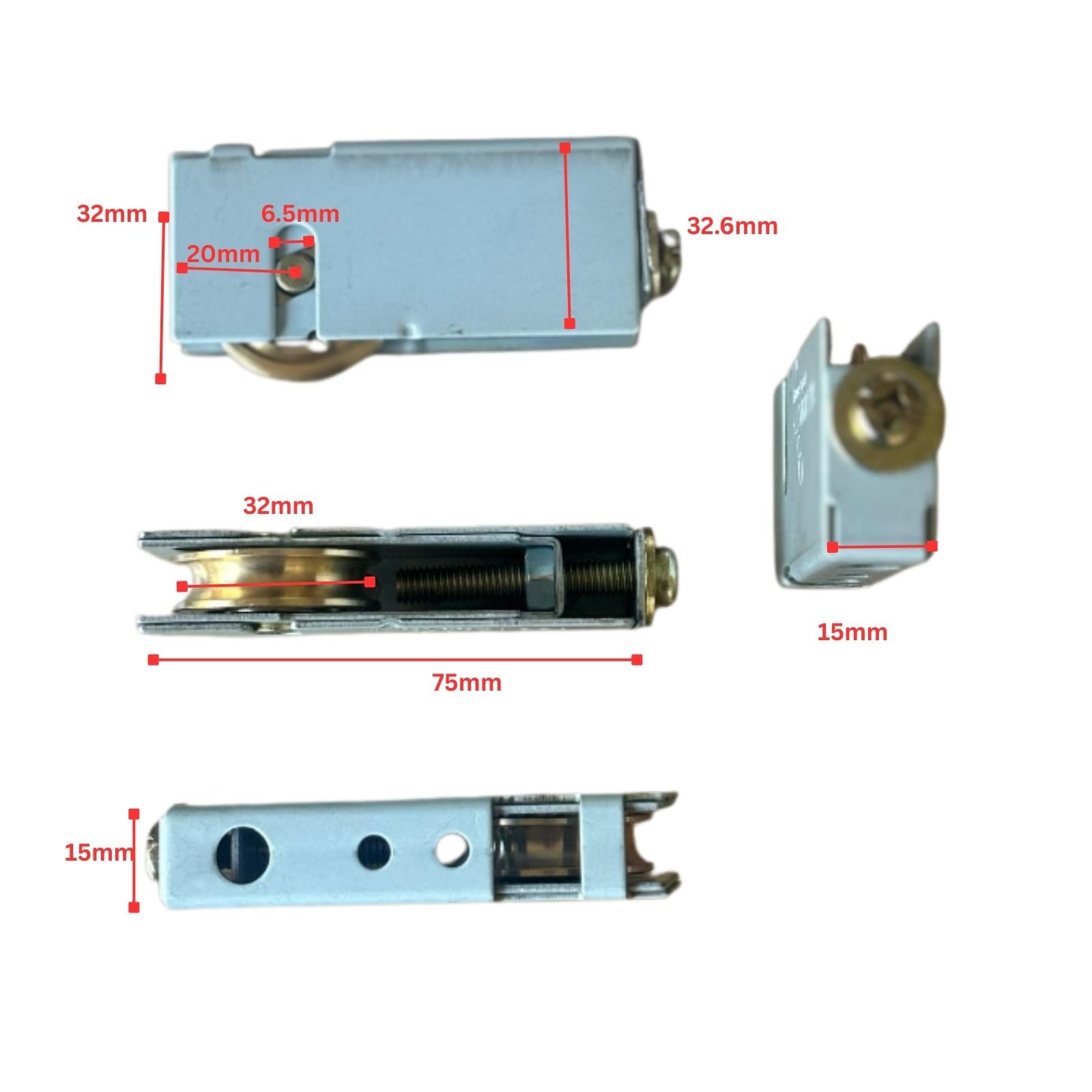

Dimensions (Approx.)

• Roller diameter: 32 mm
• Carriage width: 15 mm
• Overall carriage length: 75 mm
• Carriage height: 32 mm

Refer to images for full dimensional detail.

Compatibility

Suits applications including:
suits Trend®, suits Naco®, suits Dowell® sliding security doors
and other compatible non-flanged carriage systems for timber doors.

Applications

• Sliding wardrobe doors
• Sliding timber doors
• Dowell sliding security doors
• Some sliding patio doors
• Replacement door rollers

What’s Included

• 1 × Adjustable carriage and brass roller assembly
Sold singly
